Vibrating Bin Dischargers

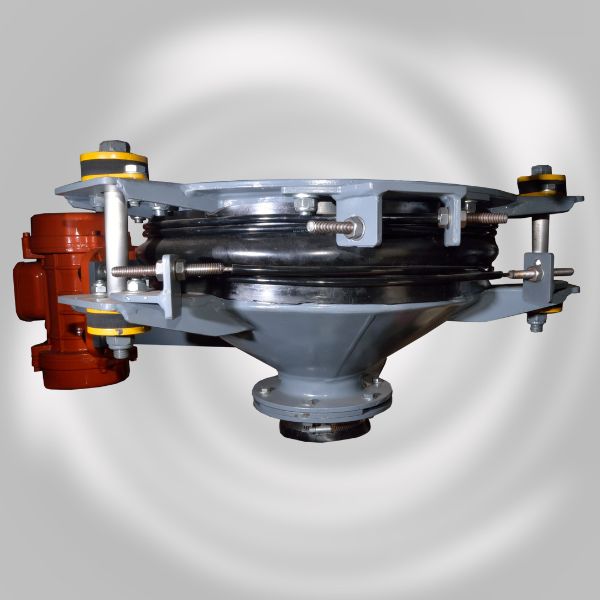

Bulkmatic Vibrating Bin Dischargers are designed to ensure even flow of granular or powdered materials out of a holding silo or hopper.

Description

Bulkmatic Vibrating Bin Dischargers are designed to ensure even flow of granular or powdered materials out of a holding silo or hopper. Together with the correct hopper cone angle this ensures that difficult materials that tend to bridge, rathole or settle and agglomerate are gently shaken by the circular vibratory motion of the vibrating bin discharger allowing them to flow freely from the vibrating bin discharger outlet.

Laser profiling of supports and rubber mounting brackets ensures consistent part size and eliminates misalignment of the rubber supports during assembly. The mounts are custom designed to be “fail-safe” ensuring that the bin discharger bottom does not drop when the rubber mounts are worn or damaged. All Vibrating Bin Dischargers are stress relieved before assembly to reduce the possibility of fatigue cracking.

As an option the flow rate out of the vibrating bin discharger can be controlled to a limited extent by using a timer controlling the on/off sequencing of the vibrator motor. The rubber sealing skirt and redesigned cable type clamps ensure that the fixed part and vibrating part of the vibrating bin discharger are separated and ensure positive sealing between the components at the same time. The sealing skirt material is in the process of being changed as part of a complete deign overhaul of the Bin Dischargers and will in future be manufactured from seamless durable Polyurethane. Replacement of the sealing skirts can be done in-situ without emptying out the silo.

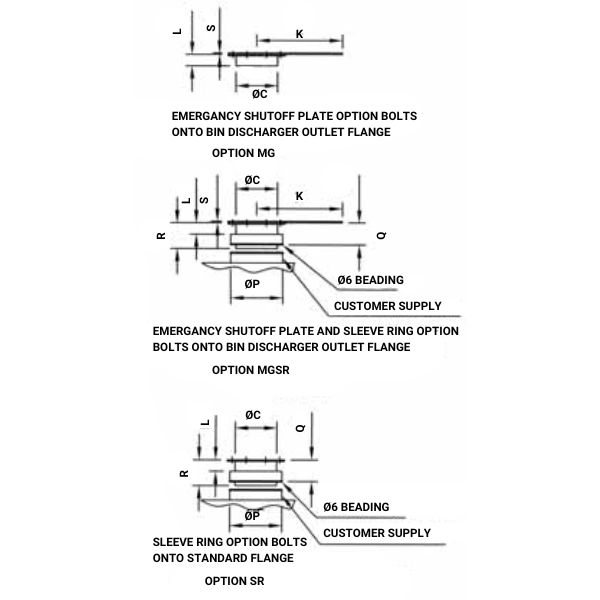

The unit outlets are fitted with emergency spectacle type slide gates (Option SP). Vibrating Bin Dischargers can be supplied in stainless steel or lined with ceramic as an option.

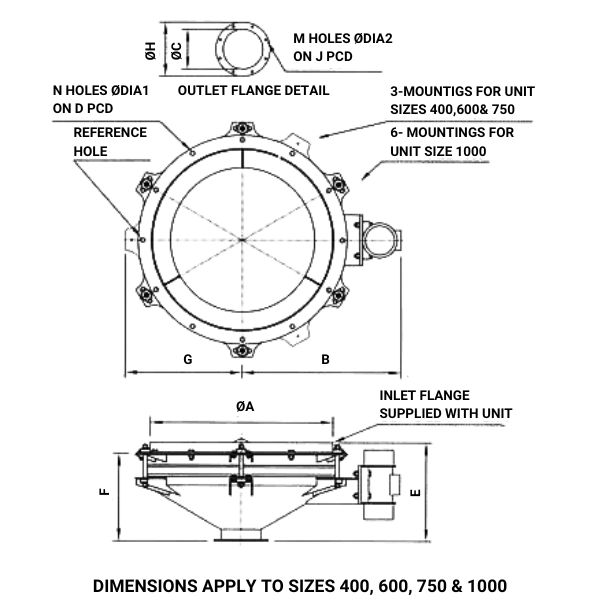

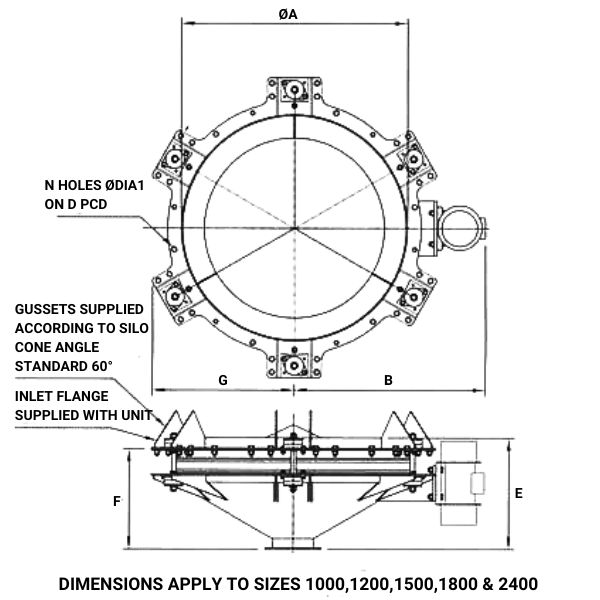

Standard sizes include: 400, 600, 750, 1000, 1200, 1500, 1800 and 2400. Other sizes manufactured on request.

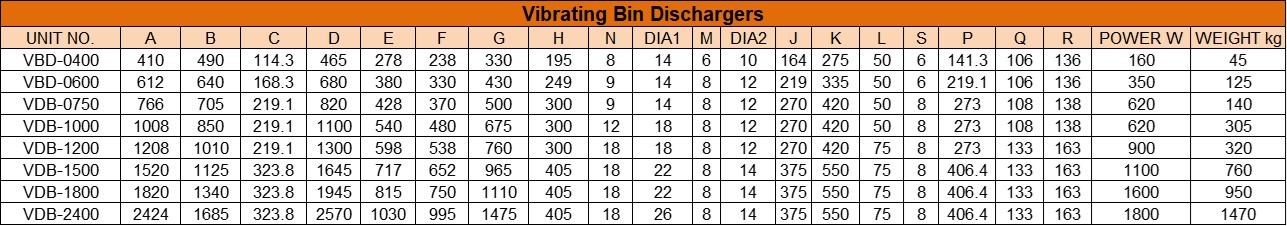

Vibrating Bin Discharger dimension table

Vibrating Bin Discharger dimension table
