Filling Pipe Assemblies

Bulkmatic Filling Pipe Assemblies are used to secure the filling pipe of a silo from unauthorized access. An integrated limit switch can be used to sense when a filling hose from a bulk tanker is connected to the filling pipe so that the reverse jet pulse filter on the silo or bin can be started.

Description

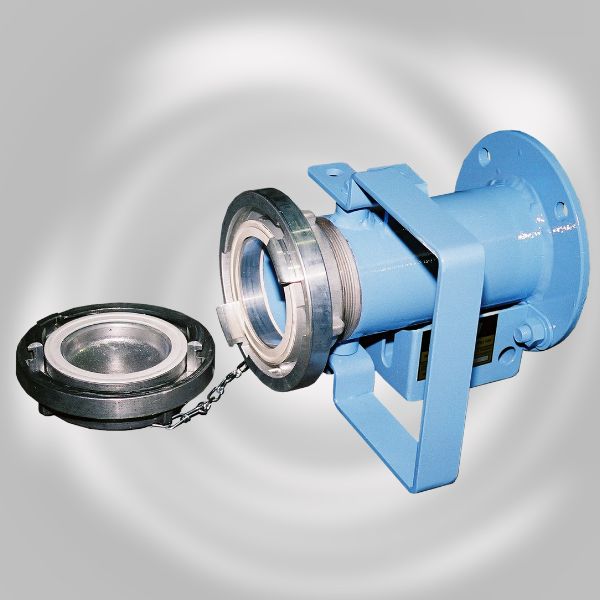

Bulkmatic Filling Pipe Assemblies are used to secure the filling pipe of a silo from unauthorized access. An integrated limit switch can be used to sense when a filling hose from a bulk tanker is connected to the filling pipe so that the reverse jet pulse filter on the silo or bin can be started. A standard padlock can be used to lock the bracket in a closed position. Precision lasercut and bent sections are used for a quality assembly. The Storz coupling is a standard pressure certified 100NB coupling fitted with a blank cap.

Coupling seals are replaceable and the blank cap ensures that the pipe is sealed airtight between filling operations. A chain fitted to the blank cap ensures that the cap is not lost while filling the silo.

Standard flange is a BS10 table “D” flange. Other flanges can be supplied on request.

Material of manufacture is mild steel. Stainless steel 304 or 316 units can be supplied for food grade applications.

Standard size is: 100NB Storz coupling with BS10 Table “D” flange.
Other sizes and configurations are supplied on request.

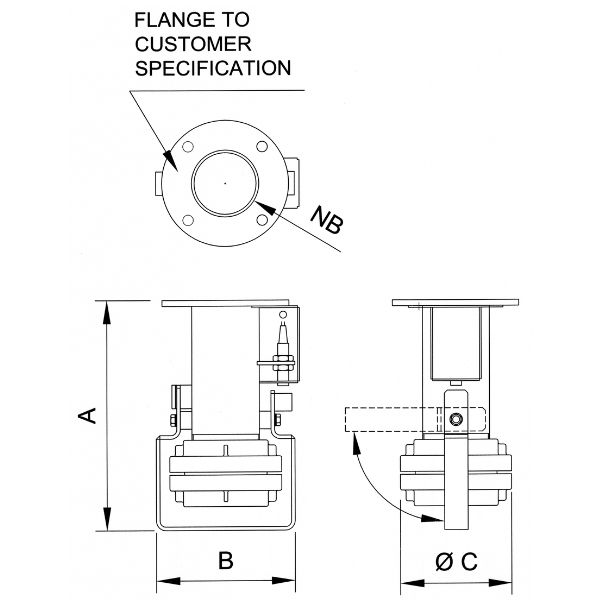

Filling Pipe Assemblies Dimension Table

Filling Pipe Assemblies Dimension Table
